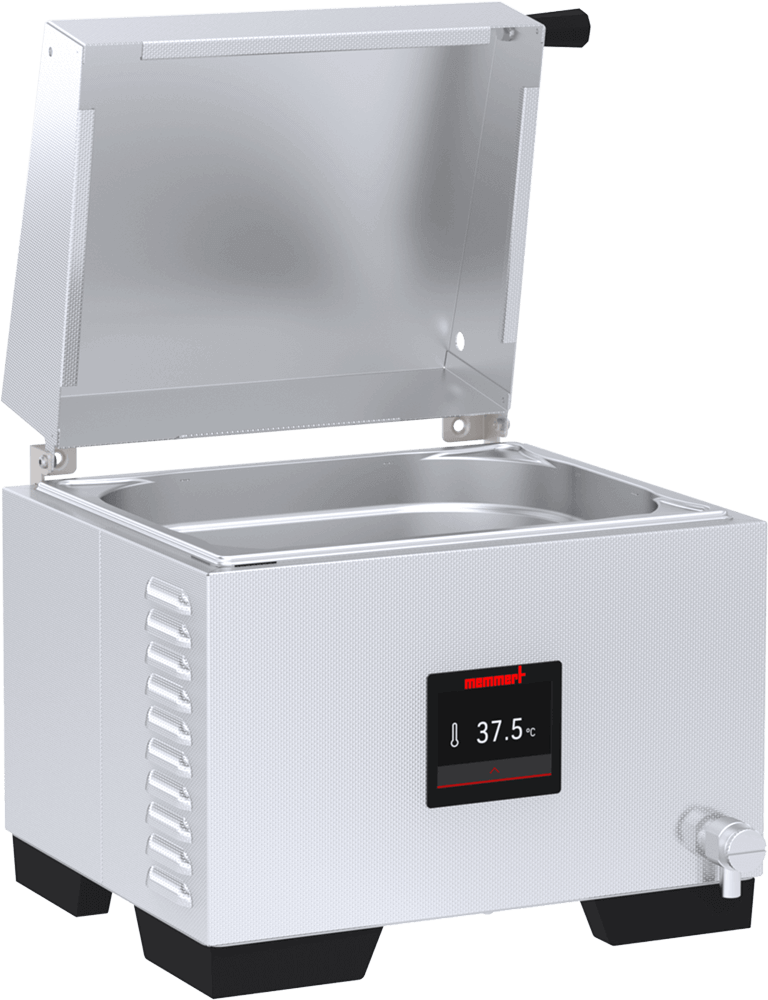

WTB35 Memmert Water Baths
Former Models: WNB29 WNE29
Overview
Ideal for the temperature control of ointments, emulsions, samples, plates and nutrient solutions in the laboratory, as well as warm storage and calibration in the industrial segment.
Contact us for customization options and pricing.
Features
Stainless Steel
Scratch resistant, hygienic and durable.
3 Year Warranty
A limited 3 year warranty is included with the option to purchase an extra year.
Techtouch display
Attractive and functional glass touch controls.
Temp. homogeneity
Designed for precise temperature control.
Temperature & Humidity
Control technology
Safety, Standards, & Data
Interior & Exterior
Accessories
Temperature & Humidity
Temperature Specs:
- Working temperature range:
5°C above ambient up to +100°C - Setting temperature range:
+10 to 100°C - Setting accuracy temperature:
0.1°C
Control technology
Control Technology:
- Controller:
Intuitive 3.5" colour graphic display with touch screen
Safety & Standards
Safety:
- Temperature control:
Independent temperature limiter to switch off the heating in case of failure
Additional data
Electrical data
230 Volts
- 50/60 Hz / approx. 12 amps
115 Volts
- 50/60 Hz / approx. 16 amps
Certifications
Interior & Exterior
Stainless Steel Interior
- Interior:
Deep-drawn stainless steel tray (stainless steel W.S. 1-4301) without corners and edges for easy cleaning incl. central drain (no disturbing installations). - Volume:
37 l - Dimensions L x W x H
24" x 19" x 6"
Textured Stainless Steel Casing
- Dimensions: L x W x H
34” x 22” x 15”
Stainless Steel
For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.
Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.
Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.
For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used. Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless-steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless-steel W-St. 1.4571 (ASTM 316i).
Accessories
| Model sizes | 6 | 11 | 15 | 24 | 35 | 50 |
|---|---|---|---|---|---|---|
| Stainless steel gable cover | B39844 | B39844 | B39845 | B39845 | B39846 | B39846 |
| Special stainless steel gable cover (only in combination with CDP115/ CDP115X2/ CPM650/ SV1524/ SV1524X2/ SV3550/ SV3550X2) | B50775 | B50775 | B50763 | B50763 | B50764 | B50764 |
| Flat stainless steel cover with openings and concentric ring sets; 3 openings, 87 mm | B48804 | B48804 | - | - | - | - |
| Flat stainless steel cover with openings and concentric ring sets; 6 openings, 107 mm | - | - | B48805 | B48805 | - | - |
| Flat stainless steel cover with concentric ring sets for ring set openings: 8 openings / 107 mm diameter | - | - | - | - | B48806 | B48806 |
| Special flat stainless steel cover with openings and concentric ring sets; 3 openings, 87 mm (only in combination with CDP115/ CDP115X2, CPM650) | B48807 | B48807 | - | - | - | - |
| Special flat stainless steel cover with openings and concentric ring sets; 6 openings, 107 mm (only in combination with CDP115/ CDP115X2, CPM650) | - | - | B48808 | B48808 | - | - |
| Special flat stainless steel cover with openings and concentric ring sets; 8 openings, 107 mm (only in combination with CDP115/ CDP115X2, CPM650) | - | - | - | - | B48809 | B48809 |
| Perforated bottom shelf, reversible for 2 heights (30 or 60 mm), stainless steel | B50767 | B50767 | B50769 | B50769 | B50771 | B50771 |
| Pump device for continuous circulation of the tempering medium. Voltage 230 V, 50/60 Hz. Please do not forget to order the installation and connection set (B48813)! (not in combination with CDP115 /CDP115X2) | CPM650 | CPM650 | CPM650 | CPM650 | CPM650 | CPM650 |
| Installation and connection set for pump device CPM650 or Peltier cooling device CDP115 (incl. mounting bars for all different bath sizes) | B48813 | B48813 | B48813 | B48813 | B48813 | B48813 |
| Shaking device for waterbaths incl. support frame, shaking frequency 30 - 150 strokes per minute (horizontal back/forth movement), requires special gable cover. Voltage 230 V, 50/60 Hz. Please do not forget to order the support basket. | - | - | SV1524 | SV1524 | SV3550 | SV3550 |
| Shaking device for waterbaths incl. support frame, shaking frequency 30 - 150 strokes per minute (horizontal back/forth movement), requires special gable cover. Voltage 115 V, 60 Hz. Please do not forget to order the support basket. | - | - | SV1524X2 | SV1524X2 | SV3550X2 | SV3550X2 |
| Support basket with perforated mounting shelf (stainless steel) with grid perforations to take clips for conical flasks (use of test tube racks not possible) | - | - | B48814 | B48814 | B48815 | B48815 |
| Clip for 100 ml flask, max. flasks see sketch on demand | - | - | B02692 | B02692 | B02692 | B02692 |
| Clip for 200 ml flask, max. flasks see sketch on demand | - | - | B02693 | B02693 | B02693 | B02693 |
| Clip for 300 ml flask, max. flasks see sketch on demand | - | - | B02694 | B02694 | B02694 | B02694 |
| Clip for 500 ml flask, Clip for 500 ml flask, max. flasks see sketch on demand | - | - | B02695 | B02695 | B02695 | B02695 |
| Rack for 171 test tubes 14.5 mm dia. | - | - | B48816 | B48816 | - | - |
| Rack for 475 test tubes 14.5 mm dia. | - | - | - | - | B48817 | B48817 |
| Rack for 119 test tubes 18 mm dia. | - | - | B48818 | B48818 | - | - |
| Rack for 357 test tubes 18 mm dia. | - | - | - | - | B48819 | B48819 |
| Rack for 45 test tubes 32 mm dia. | - | - | B48820 | B48820 | - | - |
| Rack for 117 test tubes 32 mm dia. | - | - | - | - | B48821 | B48821 |
| Test tube racks, holes 2-row racks, 34 holes, 10 mm each | B48822 | B48822 | - | - | - | - |
| Test tube racks, holes 2-row racks, 58 holes, 10 mm each | - | - | B48823 | B48823 | - | - |
| Test tube racks, holes 2-row racks, 74 holes, 10 mm each | - | - | - | - | B50656 | B50656 |
| Test tube racks, holes 2-row racks, 30 holes, 12 mm each | B48824 | B48824 | - | - | - | - |
| Test tube racks, holes 2-row racks, 58 holes, 12 mm each | - | - | B48825 | B48825 | - | - |
| Test tube racks, holes 2-row racks, 66 holes, 12 mm each | - | - | - | - | B50657 | B50657 |
| Test tube racks, holes 2-row racks, 26 holes, 14.5 mm each | B48826 | B48826 | - | - | - | - |
| Test tube racks, holes 2-row racks, 46 holes, 14.5 mm each | - | - | B48827 | B48827 | - | - |
| Test tube racks, holes 2-row racks, 58 holes, 14.5 mm each | - | - | - | - | B50658 | B50658 |
| Test tube racks, holes 2-row racks, 22 holes, 18 mm each | B48828 | B48828 | - | - | - | - |
| Test tube racks, holes 2-row racks, 38 holes, 18 mm each | - | - | B48829 | B48829 | - | - |
| Test tube racks, holes 2-row racks, 50 holes, 18 mm each | - | - | - | - | B50659 | B50659 |
| Test tube racks, holes 2-row racks, 18 holes, 21 mm each | B48830 | B48830 | - | - | - | - |
| Test tube racks, holes 2-row racks, 34 holes, 21 mm each | - | - | B48831 | B48831 | - | - |
| Test tube racks, holes 2-row racks, 44 holes, 21 mm each | - | - | - | - | B50660 | B50660 |
| Test tube racks, holes 2-row racks, 14 holes, 32 mm each | B48832 | B48832 | - | - | - | - |
| Test tube racks, holes 2-row racks, 22 holes, 32 mm each | - | - | B48833 | B48833 | - | - |
| Test tube racks, holes 2-row racks, 30 holes, 32 mm each | - | - | - | - | B50661 | B50661 |
| Test tube racks, holes 3- row racks, 33 holes, 18 mm each | B48834 | B48834 | - | - | - | - |
| Test tube racks, holes 3- row racks, 57 holes, 18 mm each | - | - | B48835 | B48835 | - | - |
| Test tube racks, holes 3- row racks, 75 holes, 18 mm each | - | - | - | - | B50662 | B50662 |
| Test tube racks, holes 4-row racks, 44 holes, 18 mm each | B48836 | B48836 | - | - | - | - |
| Test tube racks, holes 4-row racks, 76 holes, 18 mm each | - | - | B48837 | B48837 | - | - |
| Test tube racks, holes 4-row racks, 100 holes, 18 mm each | - | - | - | - | B50663 | B50663 |
| IQ/OQ document with device-specific works test data for one free selectable temperature value, incl. temperature distribution survey at Memmert for 9 measuring points to DIN 12876.2. Further temperature values and validation at customer site on demand. | D00125 | D00125 | D00125 | D00125 | D00125 | D00125 |
| Maintenance WTB - carrying out and documentation according to Memmert maintenance plan (excluding travel costs, not subject to discount, GER, AT, FR only) | S00321 | S00321 | S00321 | S00321 | S00321 | S00321 |
| Maintenance contract WTB - carrying out and documentation according to Memmert maintenance plan, minimum duration 3 years (excluding travel costs, not subject to discount, GER, AT, FR only) | S00321J | S00321J | S00321J | S00321J | S00321J | S00321J |
| Calibration of one freely selectable temperature value (excluding travel costs, not subject to discount, GER, AT, FR only) | S00205 | S00205 | S00205 | S00205 | S00205 | S00205 |
| Calibration of an additional temperature value (not subject to discount) | S00215 | S00215 | S00215 | S00215 | S00215 | S00215 |
Individual Customizations for Specialized Applications
With Memmert m360 we are able to customize our equipment from small modifications to high-tech innovations to meet your exact requirements.
